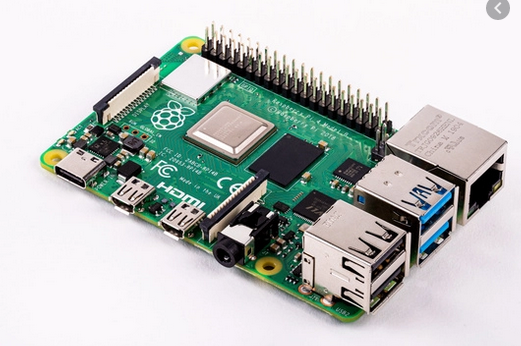

Raspberry Pi

The Raspberry Pi is a series of small single-board computers developed in the United Kingdom by the Raspberry Pi Foundation to promote the teaching of basic computer science in schools and in developing countries. The original model became far more popular than anticipated, selling outside its target market for uses such as robotics. Usually, it does not include peripherals (such as keyboards and mouse ) or cases but they can be attached via the USB ports

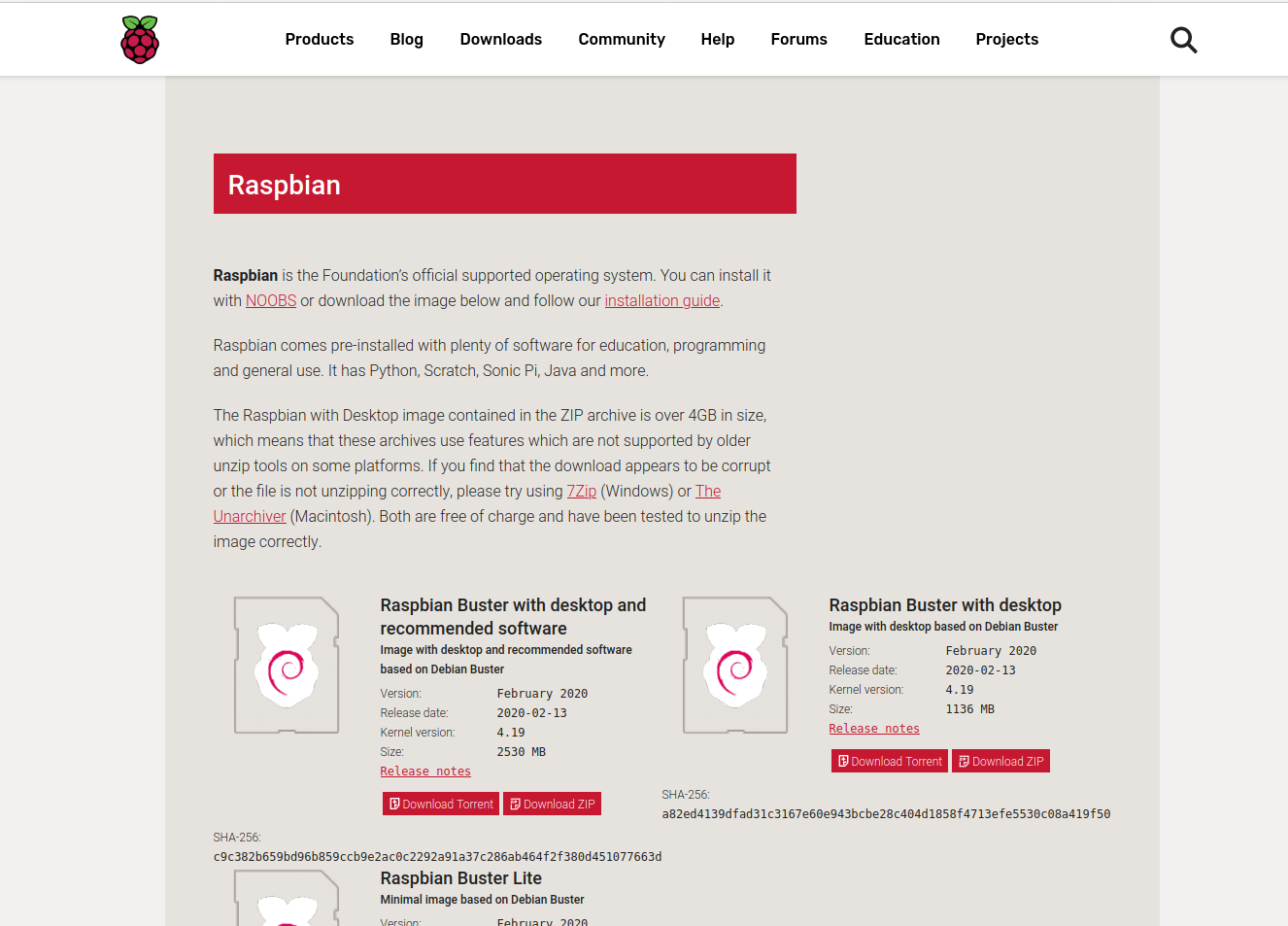

Download the os image: https://www.raspberrypi.org/downloads/raspbian

Then flashing the memory card for booting os (minimum 8 GB recommended, can use balenaEtcher)
After flashing open boot directory from the memory card

• Create an empty file and rename it ssh (remove extensions if any)
• Create another empty file and rename it wpa_supplicant.conf
• Open wpa_supplicant.conf and copy the below code
  country=US
  ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev
  update_config=1
  network={
  ssid="NETWORK-NAME"
  psk="NETWORK-PASSWORD"
  }

Replace “NETWORK-NAME” with your network name and
“NETWORK-PASSWORD” with the password of your network

Find the IP of raspberry-pi (Rpi)
You can install the Fing app in your smartphone and connect it to the same network as Rpi.
Then find the IP of Rpi.

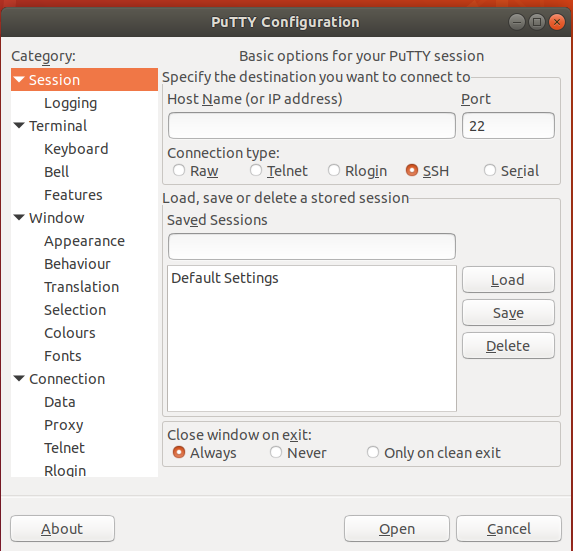

Install PuTTY SSH client

• Type the IP of Rpi in the Host Name.
• Then click open. Then a terminal opens asking your username and password. By default, the username will be pi and password raspberry.
• Type sudo raspi-config.
• In the window that appears activate VNC by moving the arrow key.

Now to use VNC viewer
Download it from:https://www.realvnc.com/en/connect/download/viewer

• Install VNC viewer
• Enter the IP of pi in the window that opens.
• Enter the username and password.

If the display is not available
Type sudo raspi-config
Go to advance settings.
Adjust resolution by selecting the appropriate one.

The world is going through a tough time, COVID-19 has struck every nation badly. Various Government and Non-Government bodies are calling for the collaborations of makers and the public to put their skills to use during the time of isolation for solving different COVID-19 problem space.
This post contains 12 such calls:

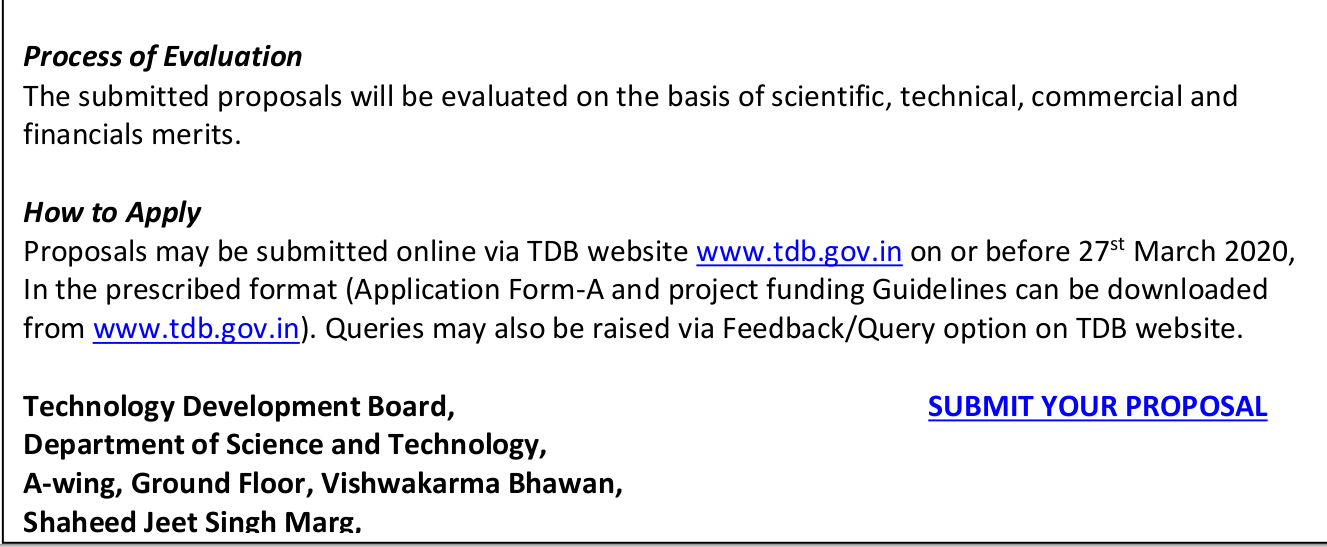

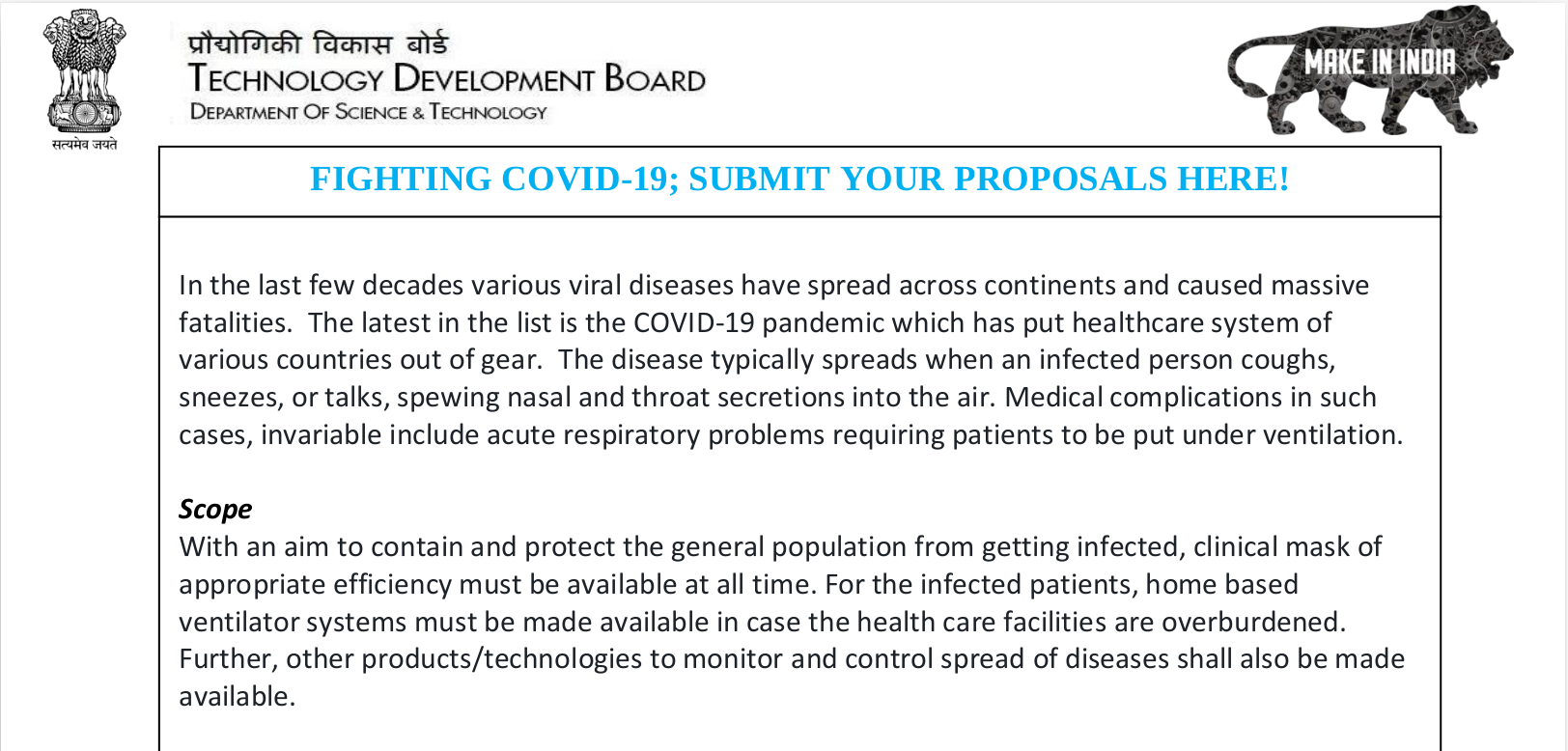

• 1) Technology Development Board
  27th March 2020
  The Technology Development Board invites proposal applications from Indian companies and enterprises to address protection and home-based respiratory intervention for COVID-19 patients.
  http://tdb.gov.in/wp-content/uploads/2020/03/Doc1-1.pdf



• 2) Ministry of Electronics and IT, MeitY, MeitY Startup Hub (MSH) (Govt of India), FICCIFLO Pune, APJ Abdul Kalam Centre, Science and Technology Park, Pune (Ministry of Science and Technology, Govt of India initiative), Garage48, Accelerate Estonia, Robotex International
  25th March 2020
  Think of all the problems that arise from the Covid-19 crisis. Which one do you want to help solve? What would be a good solution for that specific problem, and how do you plan to solve it during the hackathon?
  http://www.hackacause.in/
  https://meity.gov.in/writereaddata/files/Hack_the_crisis_India_%26_MeitY.pdf

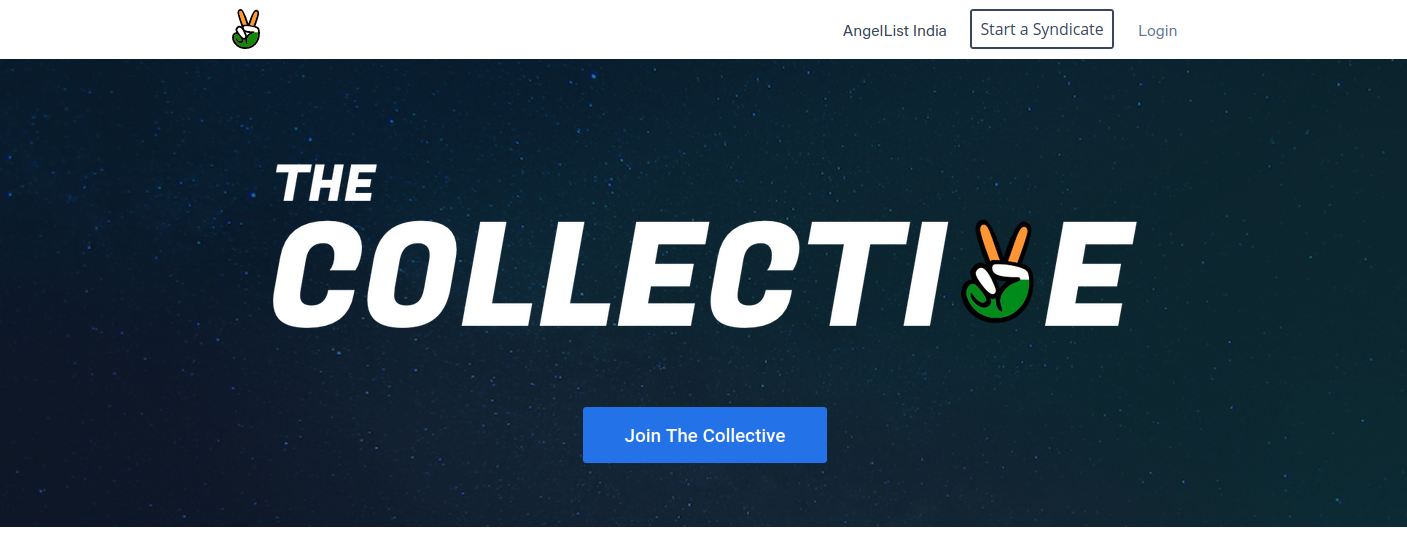

• 3) AngelList
  The Indian arm of AngelList — US-based online platform for startups, angel investors and job seekers looking to work at or with a startup — has committed to invest INR 50 Lakh into the startups that are working on possible solutions for Covid-19 or coronavirus.
  https://landing.angel.co/angellist-india-the-collective

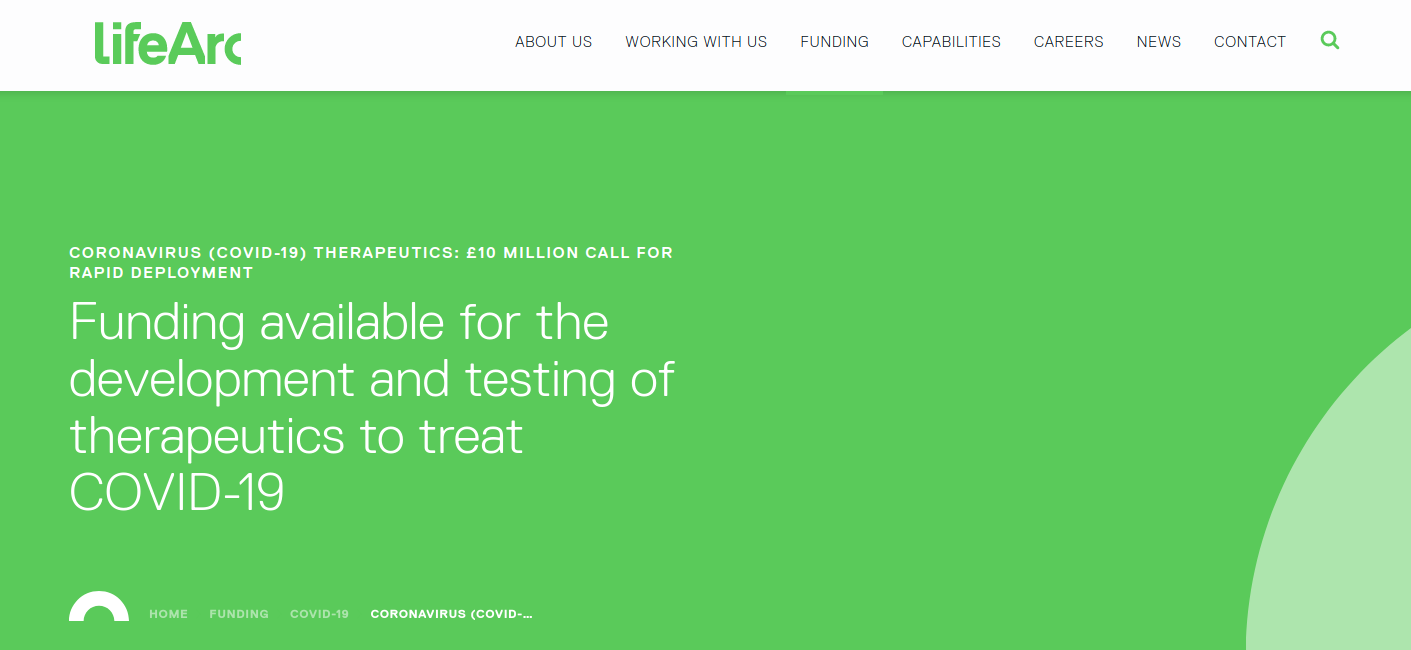

• 4) LifeArc
  6th April 2020
  LifeArc has made available an initial £10M for the identification of therapeutics that can be rapidly deployed to treat COVID-19. The aim is to run trials in patients during the current epidemic. It is anticipated that applications will be for funding to repurpose one or more drugs that are generic, already licensed, or are in late-stage development for another indication.
  https://www.lifearc.org/funding/covid-19/covid-19-funding/

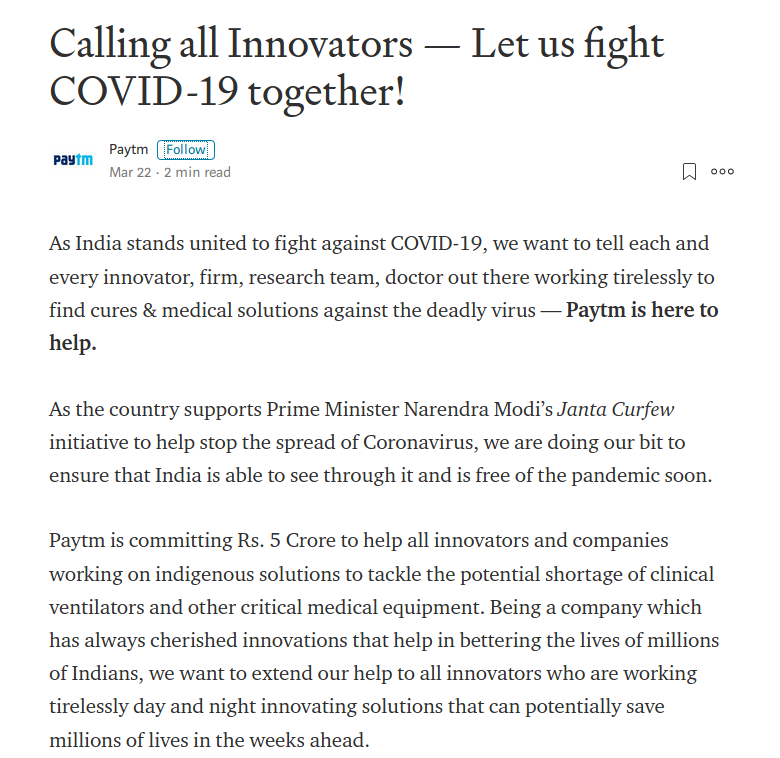

• 5) Paytm
  Paytm is committing Rs. 5 Crore to help all innovators and companies working on indigenous solutions to tackle the potential shortage of clinical ventilators and other critical medical equipment. Being a company which has always cherished innovations that help in bettering the lives of millions of Indians, we want to extend our help to all innovators who are working tirelessly day and night innovating solutions that can potentially save millions of lives in the weeks ahead.
  https://blog.paytm.com/calling-all-innovators-fighting-covid-19-we-have-your-back-ee01d1733397


• 6) Wingify

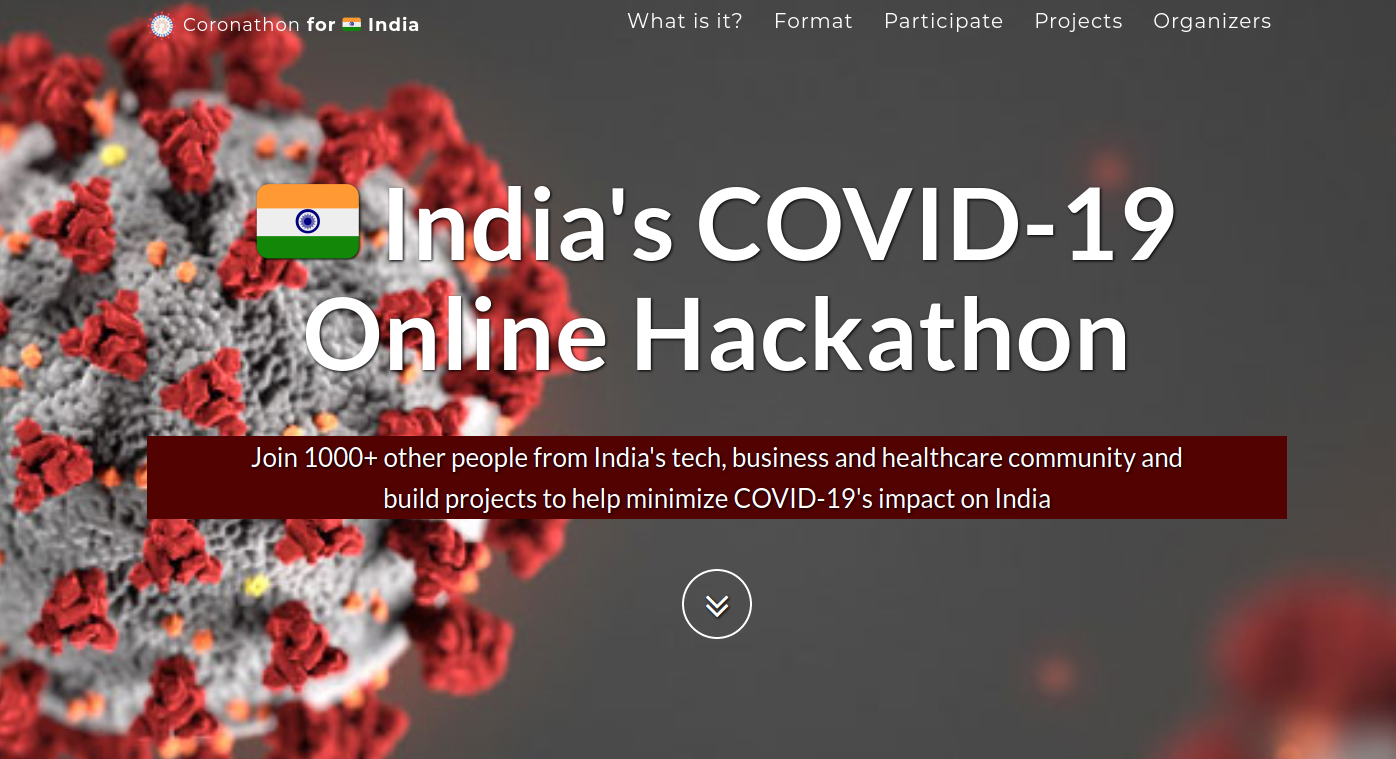

  Join 1000+ other people from India's tech, business and healthcare community and build projects to help minimize COVID-19's impact on India
  https://coronathon.in/

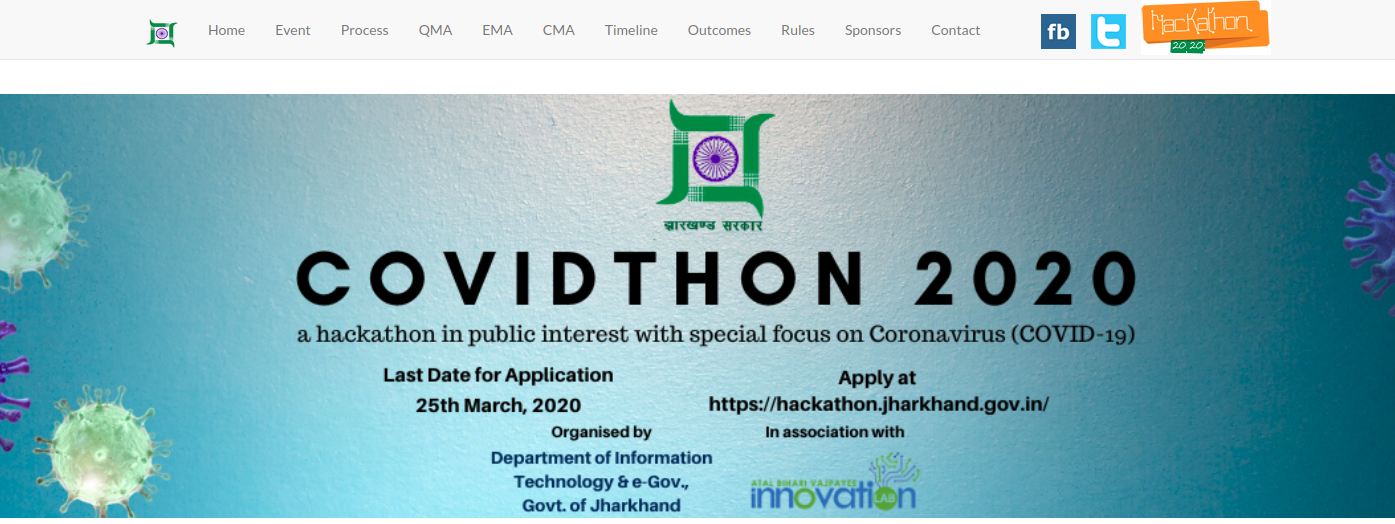

• 7) DoIT & e-Gov, Government of Jharkhand
  25th March 2020
  COVIDTHON 2020 is an online hackathon in public interest with special focus on containment of Coronavirus (COVID-19) with intent to develop following 3 interlinked components:

1. A quarantine management app (QMA) for citizens at risk identified by the administration,
2. An effort management app/web portal for administration (state, district, sub-district and medical officer levels) and
3. A general citizen app for risk assessment, reporting of cases and crowdsourcing of data.
   https://hackathon.jharkhand.gov.in


• Forge
  27 & 28 March 2020

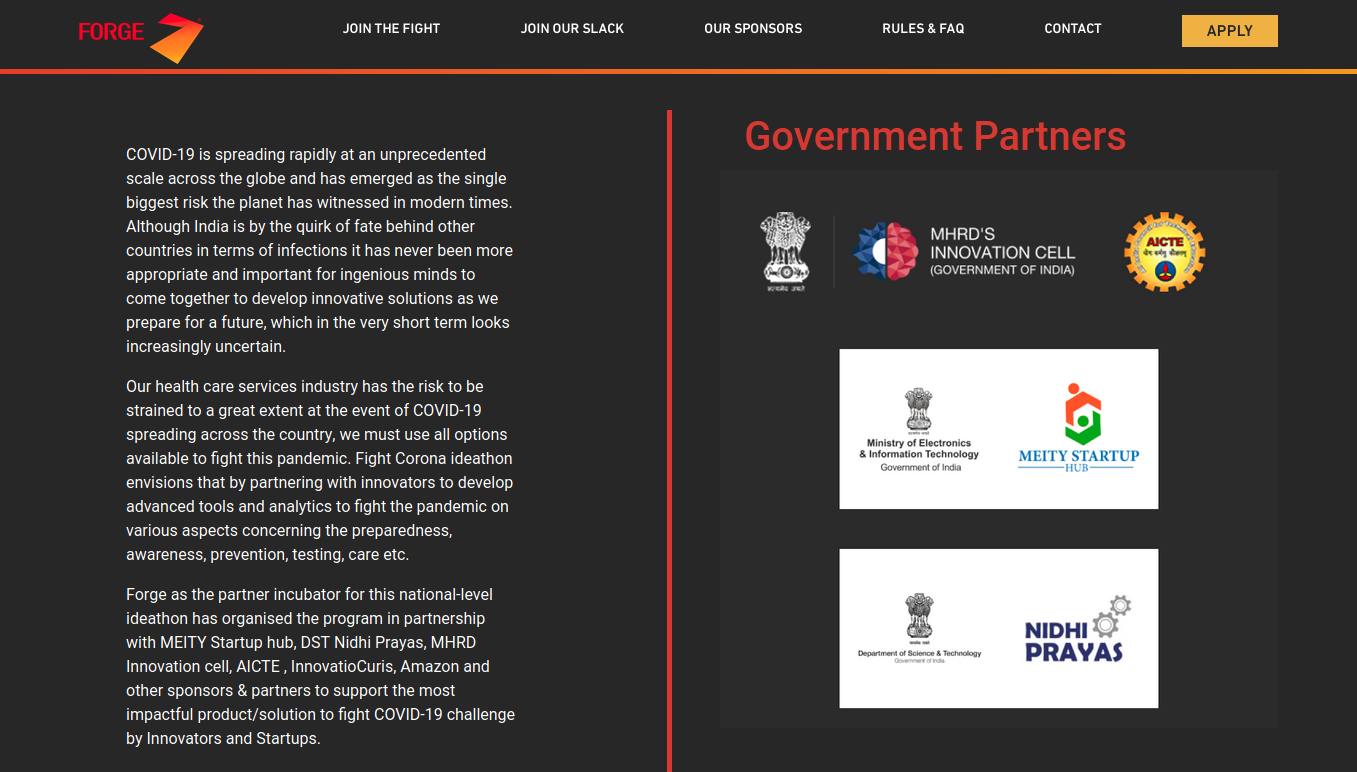

  Forge as the partner incubator for this national-level ideathon has organised the program in partnership with MHRD Innovation cell, AICTE and InnovCurious to support the most impactful ideas to fight COVID-19 challenge by Student Innovators, Educators, Researchers, Professionals & Startups, etc.
  https://www.forgeforward.in/fightcorona/


• 9) Department of Biotechnology
  30th March 2020
  To support the preparedness, readiness and response for COVID-19, project proposals are being solicited for Developing diagnostics, Vaccines, Novel Therapeutics, Repurposing of Drugs or any other intervention for control of COVID-19 by ndustry/Academia/ Industry-Academiaparticipation
  http://dbtindia.gov.in/sites/default/files/COVID-19_ Research_Consortium.pdf

• 10) SERB
  30th March 2020
  Thus, there is an urgent need to ramp up national R&D efforts for new antivirals, vaccines, and affordable diagnostics. With this background, SERB announces a special IRHPA Call (3-year duration) specifically designed for COVID-19 and related respiratory viral infections.
  https://www.serbonline.in/SERB/HomePage
  https://www.serbonline.in/SERB/AbstractFilePath?FileType=E&FileName=SERB_IRHPA_COVID_2020.pdf&PathKey=DOCUMENT_TEMPLATE

• 11) MyGov
  31st March 2020
  Government of India is taking all necessary steps to ensure that we are prepared well to face the challenge and threat posed by the growing pandemic of COVID 19 –the Corona Virus. With the active support of the people of India, we have been able to contain the spread of the virus in our country. The most important factor in preventing the spread of the Virus locally is to empower the citizens with the right information and taking precautions as per the advisories being issued by the Ministry of Health & Family Welfare. Further, we are also getting inputs with regard to individuals and companies who have developed technologies and innovative solutions, Bioinformatics, datasets, Apps for diagnosis etc that can be leveraged for strengthening the fight against Corona.
  https://innovate.mygov.in/covid19/

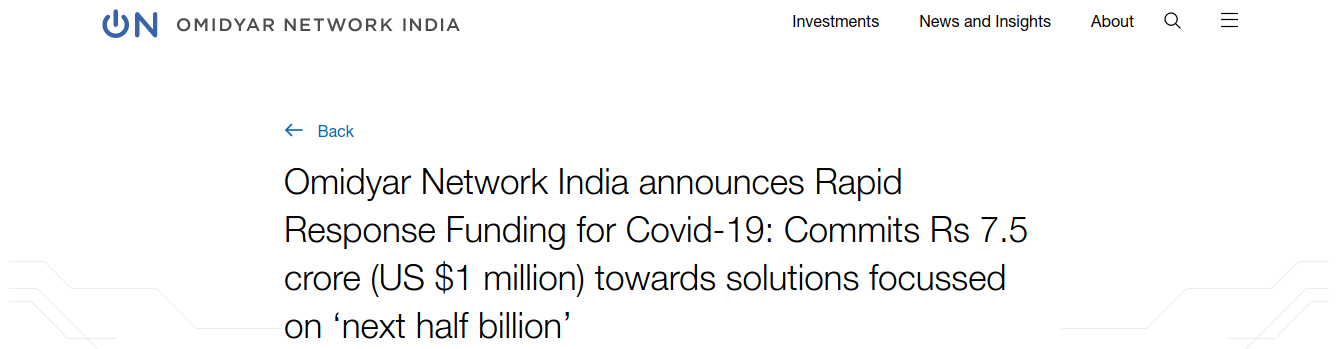

• 12) Omidyar Network
  Omidyar Network India today announced a call for proposals for rapid response funding to tackle the challenges posed by the Covid-19 situation and the consequent socio-economic impact. We are committing Rs. 7.5 crore ($1 million) to this initiative.
  https://www.omidyarnetwork.in/blog/omidyar-network-india-announces-rapid-response-funding-for-covid-19-commits-rs-7-5-crore-us-1-million-towards-solutions-focussed-on-next-half-billion


If I missed anything please add here.

@kowshik1729
We couldn't find monitor during a hackathon and it cost the majority of our time to set up pi, this was the alternative that saved us back then.

Hope it will be helpful for you to @kowshik1729

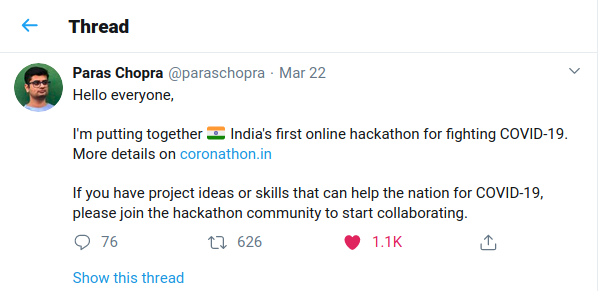

An online hackathon is taking shape to fight COVID-19, please join and collaborating for better tomorrow.
https://twitter.com/paraschopra/status/1241646717377732608?s=19

Mamta Kumari [Co-Founder PrepBytes, Former SDE Amazon, Samsung] will guide you on how to prepare for coding interviews & SWITCH to Product companies as Software Developer.
Date & Time: 28th March 2020, 09:00PM IST

Register: https://m.facebook.com/story.php?story_fbid=1076336636080255&id=502511680129423

Seminars & Webinars Start from Today 24th march 2020. (Mostly all are free)
Anyone who would like to start, this would be an easy and informative session.
As of now Till April 9th programs are scheduled.
624 sessions are available currently and rest are being announced.

GTC Digital is the great training, research, insights, and direct access to the brilliant minds of NVIDIA’s GPU Technology Conference, now online.

Join the live webinars, training, and Connect with the Experts sessions starting Tuesday, March 24. You can also choose from a library of talks, panels, research posters, and demos that you can view on your own schedule, at your own pace. New on-demand content will be announced every Thursday starting March 26.

Best of all, registration for GTC Digital is free*. Register today and start building your interest list.
https://www.nvidia.com/en-us/gtc

@kowshik1729 thank you, for the suggestion. Its informative.

Hey folks,

Want to write code that will touch the lives of hundreds of thousands of people? Are you waiting for that opportunity to give back to the society? Look no further! OpenHack- A 2 day immersive Hackathon organized by KeralaRescue team on 26th and 27th of October to unite people to work upon a single project , building a disaster management, awareness and alertness platform that can be used by the government and communities anywhere for spreading awareness,and for efficient coordination of relief and related activities .

: Integrated Start Up Complex, Kalamassery

: 26 and 27 October, 2019

Registration is open at https://openhack.tech

Hi @kowshik1729
Thank you for the insight. Will definitely post further queries here as we progress on the project. Hope you could suggest answers like these again. Thank you

Compilation Error for Seeed XIAO nRF52840 Sense in Arduino IDE on macOS

Hi everyone,

I am encountering an issue when compiling a program for the Seeed XIAO nRF52840 Sense in the Arduino IDE on macOS. Below are the details of the problem:

System Details:

• Mac Model: MacBook Air M2
• macOS Version: Sequoia 15.2
• Arduino IDE Version: 2.3.4
• Locale: UTF-8 (already configured)

Board manager details:

• Additional board Manager URL: https://files.seeedstudio.com/arduino/package_seeeduino_boards_index.json
• Board installed:
  1. Seeed nRF52 mbed-enabled Boards: 2.9.2
  2. Seeed nRF52 Boards: 1.1.8

Steps to Reproduce:

1. Open Arduino IDE on macOS.
2. Use the default program:

   // the setup function runs once when you press reset or power the board
   void setup() {
     // initialize digital pin LED_BUILTIN as an output.
     pinMode(LED_BUILTIN, OUTPUT);
   }

   // the loop function runs over and over again forever
   void loop() {
     digitalWrite(LED_BUILTIN, HIGH);  // turn the LED on (HIGH is the voltage level)
     delay(1000);                      // wait for a second
     digitalWrite(LED_BUILTIN, LOW);   // turn the LED off by making the voltage LOW
     delay(1000);                      // wait for a second
   }


3. Select Seeed XIAO nRF52840 Sense as the board.
4. Click on "Verify" or "Compile."

Observed Behavior:

The compilation fails with the following error:

Traceback (most recent call last):
 File "__main__.py", line 317, in <module>
 File "click/core.py", line 1134, in __call__
 File "click/core.py", line 1040, in main
 File "click/_unicodefun.py", line 100, in _verify_python_env
RuntimeError: Click will abort further execution because Python was configured to use ASCII as encoding for the environment. Consult https://click.palletsprojects.com/unicode-support/ for mitigation steps.

This system lists some UTF-8 supporting locales that you can pick from. The following suitable locales were discovered: af_ZA.UTF-8, am_ET.UTF-8, be_BY.UTF-8, bg_BG.UTF-8, ca_ES.UTF-8, cs_CZ.UTF-8, da_DK.UTF-8, de_AT.UTF-8, de_CH.UTF-8, de_DE.UTF-8, el_GR.UTF-8, en_AU.UTF-8, en_CA.UTF-8, en_GB.UTF-8, en_IE.UTF-8, en_NZ.UTF-8, en_US.UTF-8, es_ES.UTF-8, et_EE.UTF-8, eu_ES.UTF-8, fi_FI.UTF-8, fr_BE.UTF-8, fr_CA.UTF-8, fr_CH.UTF-8, fr_FR.UTF-8, he_IL.UTF-8, hr_HR.UTF-8, hu_HU.UTF-8, hy_AM.UTF-8, is_IS.UTF-8, it_CH.UTF-8, it_IT.UTF-8, ja_JP.UTF-8, kk_KZ.UTF-8, ko_KR.UTF-8, lt_LT.UTF-8, nl_BE.UTF-8, nl_NL.UTF-8, no_NO.UTF-8, pl_PL.UTF-8, pt_BR.UTF-8, pt_PT.UTF-8, ro_RO.UTF-8, ru_RU.UTF-8, sk_SK.UTF-8, sl_SI.UTF-8, sr_YU.UTF-8, sv_SE.UTF-8, tr_TR.UTF-8, uk_UA.UTF-8, zh_CN.UTF-8, zh_HK.UTF-8, zh_TW.UTF-8
[15256] Failed to execute script __main__

exit status 1

Compilation error: exit status 1

I'm experiencing this issue only with Mac, I tried the same with windows and it ran successfully. I have uninstalled and reinstalled Arduino ide as well.

@salmanfaris Thank you Salman, This solution worked for me.

@salmanfaris

I was using "Seeed nRF52 Boards: 1.1.8" and the issue was there. Followed the steps and installed the packages and board you mentioned and the issue is still there. I changed the board from Seeed nRF to Adafruit nRF and issue is also showing for Adafruit nRF

Compilation Error for Seeed XIAO nRF52840 Sense in Arduino IDE on macOS

Hi everyone,

I am encountering an issue when compiling a program for the Seeed XIAO nRF52840 Sense in the Arduino IDE on macOS. Below are the details of the problem:

System Details:

• Mac Model: MacBook Air M2
• macOS Version: Sequoia 15.2
• Arduino IDE Version: 2.3.4
• Locale: UTF-8 (already configured)

Board manager details:

• Additional board Manager URL: https://files.seeedstudio.com/arduino/package_seeeduino_boards_index.json
• Board installed:
  1. Seeed nRF52 mbed-enabled Boards: 2.9.2
  2. Seeed nRF52 Boards: 1.1.8

Steps to Reproduce:

1. Open Arduino IDE on macOS.
2. Use the default program:

   // the setup function runs once when you press reset or power the board
   void setup() {
     // initialize digital pin LED_BUILTIN as an output.
     pinMode(LED_BUILTIN, OUTPUT);
   }

   // the loop function runs over and over again forever
   void loop() {
     digitalWrite(LED_BUILTIN, HIGH);  // turn the LED on (HIGH is the voltage level)
     delay(1000);                      // wait for a second
     digitalWrite(LED_BUILTIN, LOW);   // turn the LED off by making the voltage LOW
     delay(1000);                      // wait for a second
   }


3. Select Seeed XIAO nRF52840 Sense as the board.
4. Click on "Verify" or "Compile."

Observed Behavior:

The compilation fails with the following error:

Traceback (most recent call last):
 File "__main__.py", line 317, in <module>
 File "click/core.py", line 1134, in __call__
 File "click/core.py", line 1040, in main
 File "click/_unicodefun.py", line 100, in _verify_python_env
RuntimeError: Click will abort further execution because Python was configured to use ASCII as encoding for the environment. Consult https://click.palletsprojects.com/unicode-support/ for mitigation steps.

This system lists some UTF-8 supporting locales that you can pick from. The following suitable locales were discovered: af_ZA.UTF-8, am_ET.UTF-8, be_BY.UTF-8, bg_BG.UTF-8, ca_ES.UTF-8, cs_CZ.UTF-8, da_DK.UTF-8, de_AT.UTF-8, de_CH.UTF-8, de_DE.UTF-8, el_GR.UTF-8, en_AU.UTF-8, en_CA.UTF-8, en_GB.UTF-8, en_IE.UTF-8, en_NZ.UTF-8, en_US.UTF-8, es_ES.UTF-8, et_EE.UTF-8, eu_ES.UTF-8, fi_FI.UTF-8, fr_BE.UTF-8, fr_CA.UTF-8, fr_CH.UTF-8, fr_FR.UTF-8, he_IL.UTF-8, hr_HR.UTF-8, hu_HU.UTF-8, hy_AM.UTF-8, is_IS.UTF-8, it_CH.UTF-8, it_IT.UTF-8, ja_JP.UTF-8, kk_KZ.UTF-8, ko_KR.UTF-8, lt_LT.UTF-8, nl_BE.UTF-8, nl_NL.UTF-8, no_NO.UTF-8, pl_PL.UTF-8, pt_BR.UTF-8, pt_PT.UTF-8, ro_RO.UTF-8, ru_RU.UTF-8, sk_SK.UTF-8, sl_SI.UTF-8, sr_YU.UTF-8, sv_SE.UTF-8, tr_TR.UTF-8, uk_UA.UTF-8, zh_CN.UTF-8, zh_HK.UTF-8, zh_TW.UTF-8
[15256] Failed to execute script __main__

exit status 1

Compilation error: exit status 1

I'm experiencing this issue only with Mac, I tried the same with windows and it ran successfully. I have uninstalled and reinstalled Arduino ide as well.

@Abhay

We try to find more about the error so far this is what we got from it.

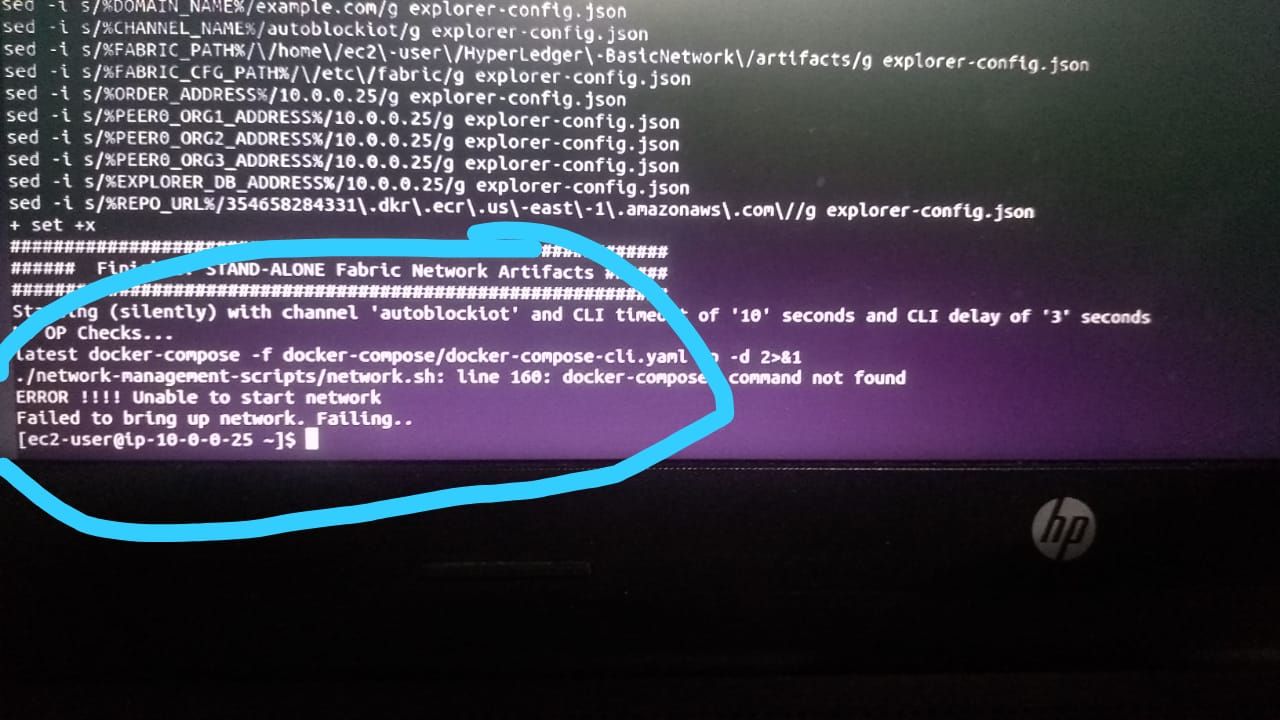

So we run user data commands inside instance via SSH. Then error popped up when we run command for network artefacts.

Any suggestions??

@kowshik1729
We couldn't find monitor during a hackathon and it cost the majority of our time to set up pi, this was the alternative that saved us back then.

Hope it will be helpful for you to @kowshik1729

@salmanfaris Thanks for reminding about windows machine partitions and insight about using Ext2Read.

For Linux users, can skip the process of installing PuTTy SSH Client since SSH client are installed in Linux by default.
Open terminal and type: **

• ssh pi@ipaddress //Replace ipaddress with IP address of your pi.
  then enter the username (by default: pi)
  password (by default: raspberry)

Download and install deb package for VNC viewer.

Raspberry Pi

The Raspberry Pi is a series of small single-board computers developed in the United Kingdom by the Raspberry Pi Foundation to promote the teaching of basic computer science in schools and in developing countries. The original model became far more popular than anticipated, selling outside its target market for uses such as robotics. Usually, it does not include peripherals (such as keyboards and mouse ) or cases but they can be attached via the USB ports

Download the os image: https://www.raspberrypi.org/downloads/raspbian

Then flashing the memory card for booting os (minimum 8 GB recommended, can use balenaEtcher)
After flashing open boot directory from the memory card

• Create an empty file and rename it ssh (remove extensions if any)
• Create another empty file and rename it wpa_supplicant.conf
• Open wpa_supplicant.conf and copy the below code
  country=US
  ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev
  update_config=1
  network={
  ssid="NETWORK-NAME"
  psk="NETWORK-PASSWORD"
  }

Replace “NETWORK-NAME” with your network name and
“NETWORK-PASSWORD” with the password of your network

Find the IP of raspberry-pi (Rpi)
You can install the Fing app in your smartphone and connect it to the same network as Rpi.
Then find the IP of Rpi.

Install PuTTY SSH client

• Type the IP of Rpi in the Host Name.
• Then click open. Then a terminal opens asking your username and password. By default, the username will be pi and password raspberry.
• Type sudo raspi-config.
• In the window that appears activate VNC by moving the arrow key.

Now to use VNC viewer
Download it from:https://www.realvnc.com/en/connect/download/viewer

• Install VNC viewer
• Enter the IP of pi in the window that opens.
• Enter the username and password.

If the display is not available
Type sudo raspi-config
Go to advance settings.
Adjust resolution by selecting the appropriate one.

We are trying to build a blockchain-based solution for the forensic application of vehicular accidents. The accident data of the vehicle is stored to a blockchain network in hyperledger fabric, so that no one can tamper the data, only authenticated authorities who have access to the hyperledger fabric network ledger can access to it which we make use of the channel concept in the hyperledger framework.

So the data from the IoT device (currently we build an app to access data such as accelerometer, gyroscope and GPS from smartphones) is been transferred to the Hyperledger Fabric network. We try to create a Fabric network in the AWS blockchain template for Hyperledger Fabric. Then from this hyperledger fabric, all the organizations who are part of this network such as forensic, insurance, manufacturers etc, are the stakeholders who can access the data in the network via the channel (channels helps to bring abstractions ie each stakeholder will only know what is necessary for them).

So we try to create the blockchain network in AWS using Blockchain template for hyperledger fabric. The template for network creation is actually inside a cloud formation stack, which is a service provided by AWS, so we need to create the stack to create the network. Before creating this stack we need to create a VPC, EC2 instance, IAM roles and policies. So we follow according to the below youtube video to create it.

https://www.youtube.com/watch?v=bDm1agCBR4c&feature=youtu.be

After completing all the above prerequisite, we need to create the template inside the stack. Inside the stack we need to provide stack with the name of the stakeholders in the network ie, forensic, manufacturers etc.. Name of the VPC, EC2 instance ID, all the prerequisite details we created earlier.

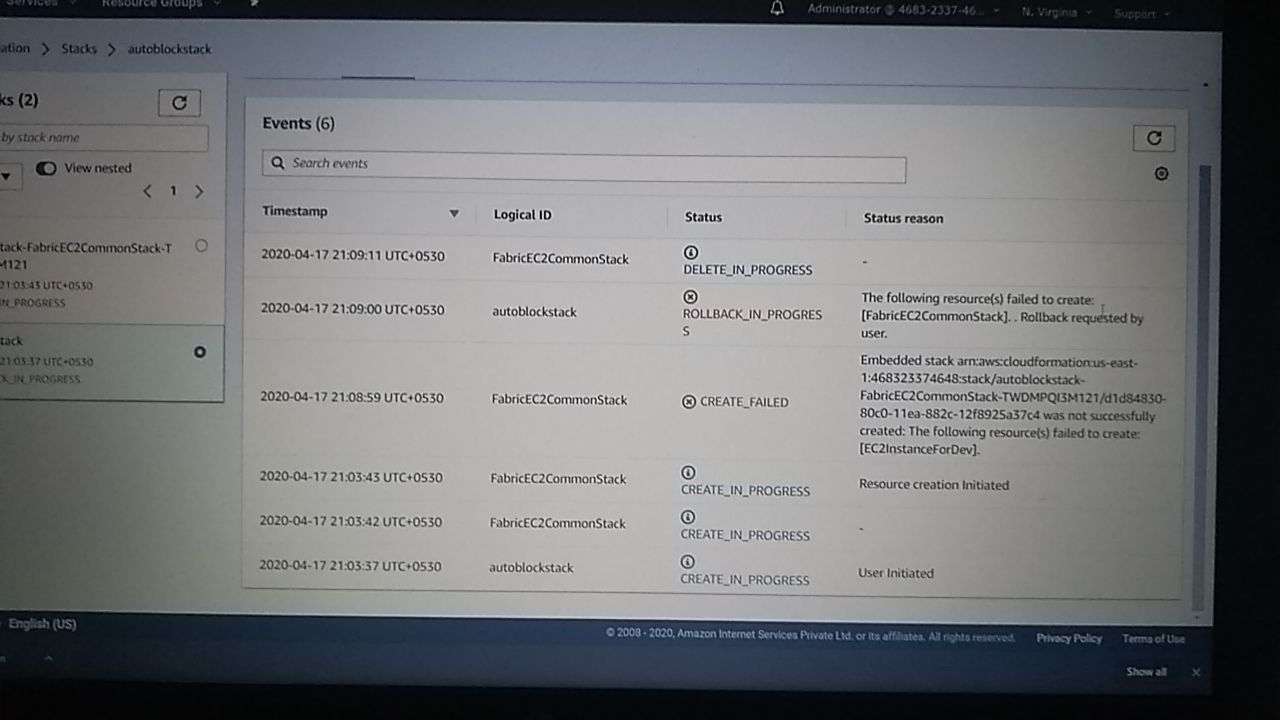

When clicking the create a stack, it takes some time to create it, after some time it shows the stack is getting failed and getting rollback, there will be two stacks one is a nested stack of the parent stack, which contains all the artefacts for the hyperledger fabric network it is one which gets failed first, then the parent stack which contains the link to the EC2 instance.

screenshot of the error

Integration part ie transferring data and accessing ledger can be done only after this stack creation and network spun up.

@arunksoman thanks,
I will look more into it. Thanks again

@arunksoman by usual steps I meant adding our user to the group.
ie the step
sudo usermod -a -G dialout <username>
