    how did sudo command solved can't open device "/dev/ttyUSB0": Permission denied?

    General Discussion
    arduino linux nodemcu
    2
    7
    1216
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • Abhay
      Abhay last edited by

      Please read full

      This is the most common or the most probable error you might have seen if you tried coding Arduino, nodeMCU etc in Arduino-ide.
      It might happen that when you upload a sketch - after you have selected your board and the serial port -, you get an error Error opening serial port ... If you get this error, we google it and the method to debug it is to set serial port permission.

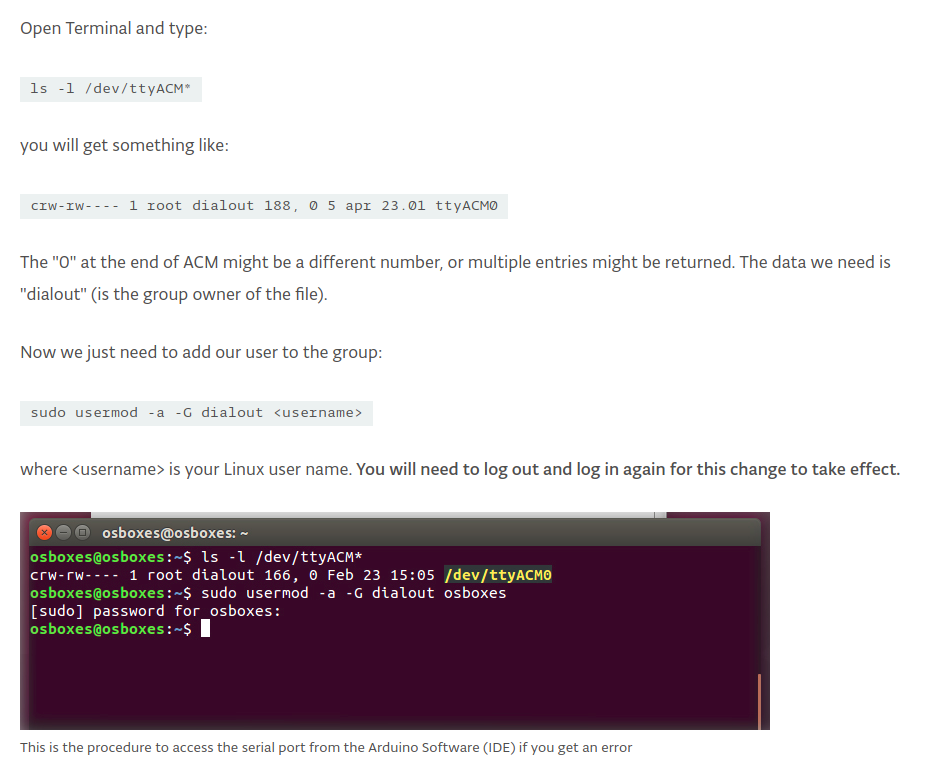

      Screenshot from 2020-03-29 17-27-59.png

      this is the steps we followed to solve it. Even though the error stilled showed sometimes and had to use this code again.

      Since I try different distros of Linux sometimes I end up corrupting the old distro and reinstalling it from the beginning.
      This time I actually didn't follow these step but installed Arduino from the terminal using sudo apt install arduino command and run the code. The interface was completely different. The image below is the general interface of ide but installing it with sudo command give an ide with same screen but no setup{} or loop() part, a blank screen.
      Screenshot from 2020-03-29 17-42-34.png
      An error popped up about the port issue and solution to add the user to the group was mentioned in the terminal and followed the same command. After which the error never showed. I also snap installed arduino.

      Now my question is : By installing arduino using sudo command did I install ide or supporting libraries and why did the error stop?

      1 Reply Last reply Reply Quote 0
      • A
        arunksoman last edited by arunksoman

        1. Go to Arduino software
        2. Download Linnux 64-bit or 32-bit software
        3. Extract the Downloaded tar.xz file on your home directory.
        4. Navigate to your extracted file using cd command:
          cd arduino-1.8.12-linux64
        5. Make the install.sh file executable:
          sudo chmod +x install.sh
        6. Install arduino using shell script
          sudo ./install.sh
        7. Open Terminal and type:
          ls -l /dev/ttyACM*
          you will get something like:
          crw-rw---- 1 root dialout 188, 0 5 apr 23.01 ttyACM0
          The "0" at the end of ACM might be a different number, or multiple entries might be returned. The data we need is "dialout" (is the group owner of the file).
          Now we just need to add our user to the group:
          sudo usermod -a -G dialout <username>

        I believes it is a better way to solve your problem. Other way you to try to solve problem is install arduino via:
        sudo apt-get install arduino-core

        Abhay 1 Reply Last reply Reply Quote 2
        • Abhay
          Abhay @arunksoman last edited by

          @arunksoman thanks for the steps
          but the thing is I don't have issues with port now, I was curious how it got resolved without going through the usual steps but by using sudo command.

          A 1 Reply Last reply Reply Quote 0
          • A
            arunksoman @Abhay last edited by arunksoman

            @Abhay What did you mean by usual steps?

            Abhay 1 Reply Last reply Reply Quote 0
            • Abhay
              Abhay @arunksoman last edited by

              @arunksoman by usual steps I meant adding our user to the group.
              ie the step
              sudo usermod -a -G dialout <username>

              A 1 Reply Last reply Reply Quote 0
              • A
                arunksoman @Abhay last edited by

                @Abhay I think most probably you might have done this earlier while installing Arduino.

                Abhay 1 Reply Last reply Reply Quote 0
                • Abhay
                  Abhay @arunksoman last edited by

                  @arunksoman thanks,
                  I will look more into it. Thanks again

                  1 Reply Last reply Reply Quote 0
