    PCB Design for ESP32 Stand alone module

    PCB Designing
    pcb esp32
    7
    31
    18899
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • S
      Sharmila @kowshik1729 last edited by Sharmila

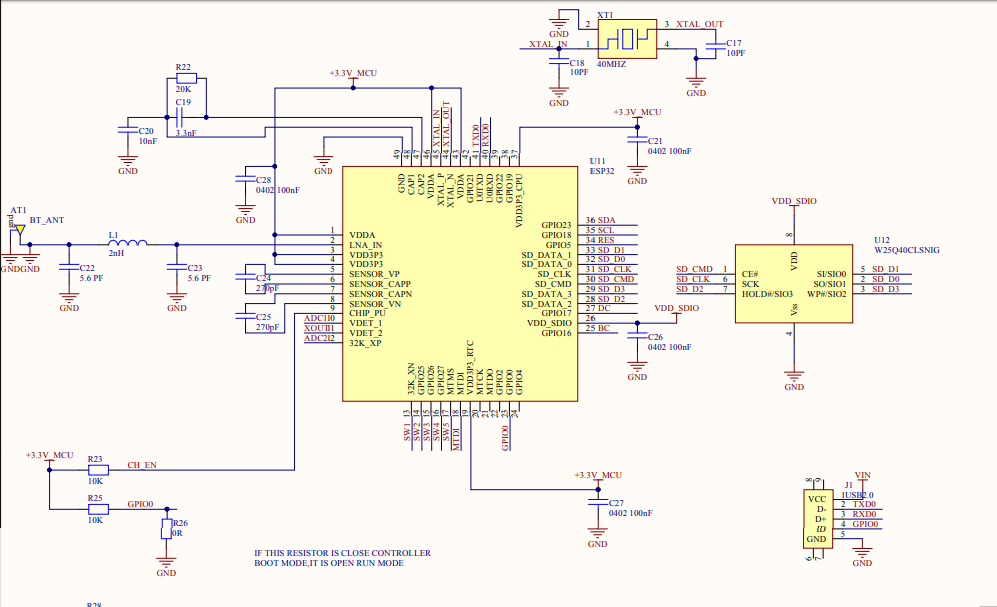

      @kowshik1729 thank you for the hint ! i will check it . schematic picture of my board is given below

      (freesnippingtool.com_capture_20200721122206.png)

      saheen_palayi 1 Reply Last reply Reply Quote 1
      • S
        Sharmila @kowshik1729 last edited by

        @kowshik1729 sorry, gpio 0 is low only till it is programmed. after that this will disconnected.

        1 Reply Last reply Reply Quote 0
        • kowshik1729
          kowshik1729 last edited by

          @Sharmila Reviewed your schematics. Have the following doubts

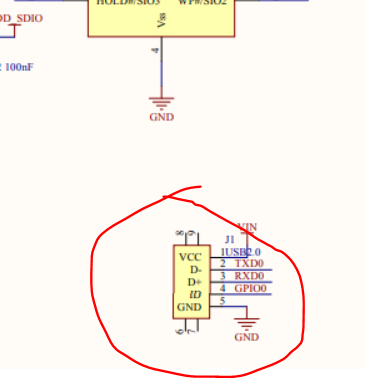

          1. Is this a USB receptacle?


          1. Didn't find any option where you can pull the GPIO0 low and bring it back to normal state. Did you have a jumper connection or button between GPIO0 and GND?
          1 Reply Last reply Reply Quote 0
          • S
            Sharmila last edited by

            1. no.

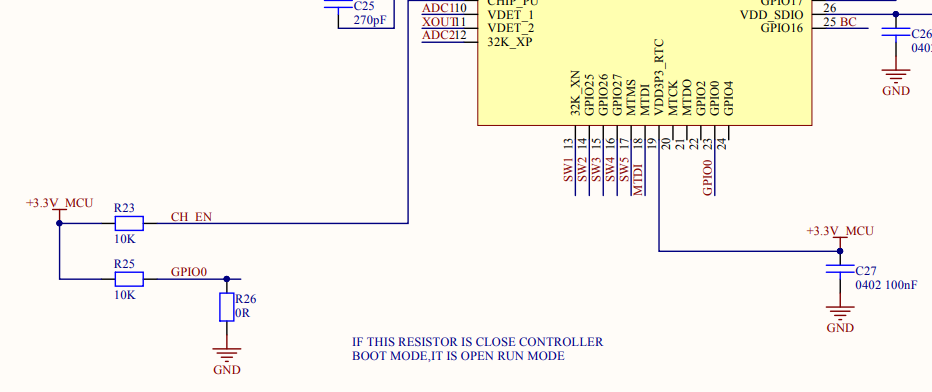

            2. we are using jumper for gpio 0th pin. please refer the below image.
            1 Reply Last reply Reply Quote 0
            • saheen_palayi
              saheen_palayi @Sharmila last edited by

              This post is deleted!
              1 Reply Last reply Reply Quote 0
