Cant upload program to esp32 using my custom circuit

ESP32

216

R
Richu Bini last edited by

Showing this message from serial monitor .... i have used an arduino as a TTL module by shorting the GND and reset pin

when i tried to upload the code it is showing this error

This is the schematic i used
R A 3 Replies Last reply
Reply Quote 0
salmanfaris @Richu Bini last edited by

Hi @Richu-Bini , What kind of UART/FTDI programmer you are using? Could also share the connection diagram to the module with the programmer?

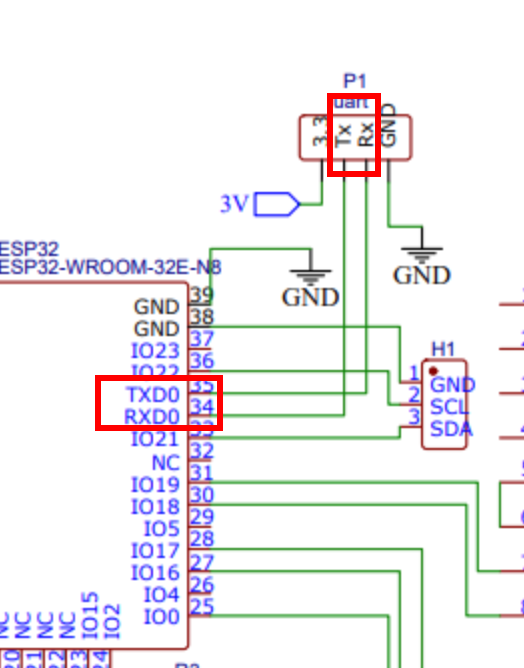

and in the diagram I see, you already twisted Rx and Tx, so you should connect the FTDI with the module Esp32 Rx - FTDI Rx and Esp32 TX - FTDI TX.
1 Reply Last reply
Reply Quote 0
R
Richu Bini @Richu Bini last edited by

@Richu-Bini am using an Arduino uno as ttl module
1 Reply Last reply
Reply Quote 0
A
aneeshprasobhan @Richu Bini last edited by

@Richu-Bini I'm not sure if this is the root cause but normally, you should add an RC delay on the EN pin. This is because the BOOT pin should reach 3.3V before the EN reaches 3.3V hence, the RC delay on the EN pin. A 10K resistor and a 1μF Cap should do it. Here's a sketch on how it should look like:

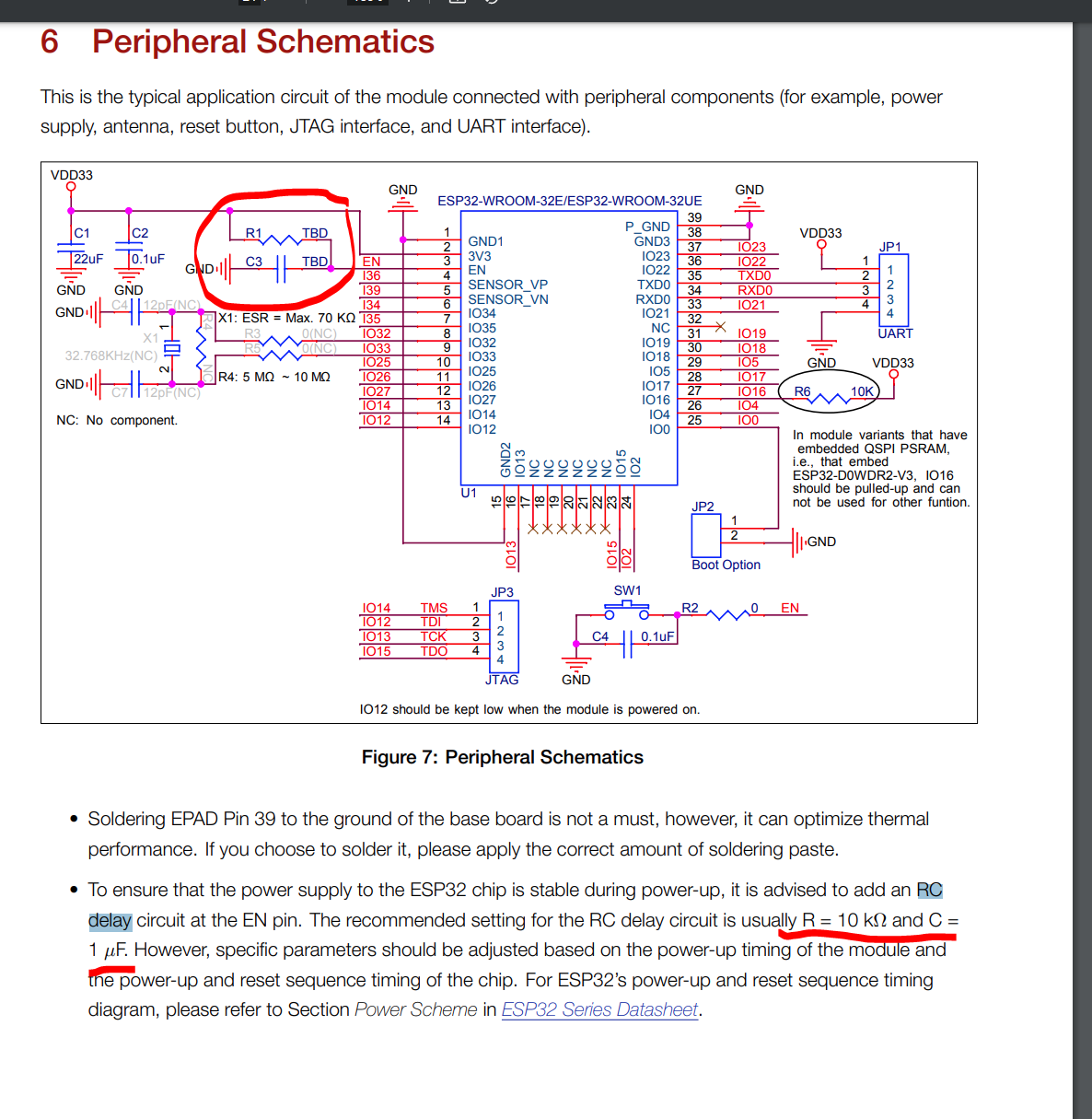

Here is the part in the datasheet of the WROOM32 that tells you to do it:
1 Reply Last reply
Reply Quote 1
