    Automatic pairing of ESP32 using BLE

    Arduino
    esp32 masterslaveco ble bluetooth
    2
    17
    9699
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • salmanfaris
      salmanfaris @kowshik1729 last edited by salmanfaris

      @kowshik1729 The nRF app is very helpful for debugging the BLE application like I said the previous replay " The value you are getting as hex,so you should convert the received hex into to string, int or float in order to see the data. " .

      1 Reply Last reply Reply Quote 0
      • kowshik1729
        kowshik1729 last edited by kowshik1729

        static void notifyCallback (BLERemoteCharacteristic * pBLERemoteCharacteristic,
        uint8_t * pData, size_t length, bool isNotify)
        {
          Serial.print ("Notify callback for characteristic ");
          Serial.print (pBLERemoteCharacteristic->getUUID ().toString ().c_str ());
          Serial.print (" of data length ");
          Serial.println (length);
          Serial.print ("data: ");
          Serial.println ((char *) pData);
        }


        @salmanfaris With a little research I got to know I need to work out on this notifyCallBack function. I have a doubt, just by type casting the last line of code to my required data type will solve the problem?

        Serial.println(int((char* )pData));


        Will this solve my problem?☝

        salmanfaris 1 Reply Last reply Reply Quote 0
        • salmanfaris
          salmanfaris @kowshik1729 last edited by

          @kowshik1729 You may try it out , that's the best way to check it's working or not .

          1 Reply Last reply Reply Quote 0
          • kowshik1729
            kowshik1729 last edited by

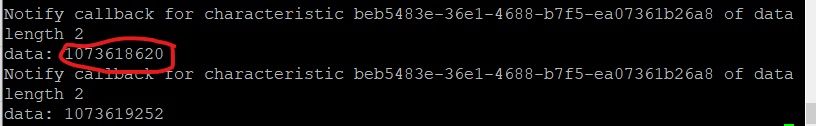

            @salmanfaris Hello bro, I've tried the typecasting the incoming data and got the following result which is not the desired value that I want to receive. It is looking vague. 👇

            Screenshot (1)_LI.jpg

            I even tried changing it to float by using the following code,

            Serial.println((float)(char*)pData);


            but the IDE threw an error saying 👇

            Arduino: 1.8.9 (Windows 10), Board: "ESP32 Dev Module, Disabled, Default, 240MHz (WiFi/BT), QIO, 80MHz, 4MB (32Mb), 921600, None"

            D:\Arduino_practises\BLE_Client\BLE_Client.ino: In function 'void notifyCallback(BLERemoteCharacteristic*, uint8_t*, size_t, bool)':

            BLE_Client:26:32: error: invalid cast from type 'char*' to type 'float'

               Serial.println((float)(char*)pData);

                                            ^

            exit status 1
            invalid cast from type 'char*' to type 'float'


            What can I do??

            1 Reply Last reply Reply Quote 0
            • kowshik1729
              kowshik1729 last edited by kowshik1729

              @salmanfaris I have finally figured out a way to send any data that comes over the serial of the Server ESP32 to client ESP32 over BLE. I understood that the whole BLE code that we are dealing with, works very fine in accepting the "C Strings". So, I wrote the below function in order to accept the values coming from the Serial monitor of the server(I connected the ESP's to my computer via serial port and that's how I am able to write the values to them using serial monitor). Check out my corrected code👇

              if(Serial.available()>0)
                  {
                    String sending = Serial.readString(); //Reading from the Serial monitor
                    std::string s = sending.c_str(); //Converting the read string to so called "C String"
                    pCharacteristic->setValue(s);
                    pCharacteristic->notify();
                  }


              It worked very fine in receiving the data over the Client side. But, there is a discrepancy here. A speck of data that is sent in 1st iteration is being repeated in the second one and the data from second and first iterations are being visible in the third iteration and so on.


              I suspect that there is something wrong with the storage buffer(Bluetooth stack). I think that the buffer is not being cleared/flushed properly each time the incoming data is coming. Is there any way to flush the data each time the server notifies the client with a data? Please suggest me ways to do it.

              The code for accepting data from the mobile phone is

              //                                Server side code
              /*
                A connect hander associated with the server starts a background task that performs notification
                every couple of seconds.
              */
              #include <BLEDevice.h>
              #include <BLEServer.h>
              #include <BLEUtils.h>
              #include <BLE2902.h>
              #include <BLECharacteristic.h>

              #ifdef __cplusplus
              extern "C" {
              #endif
              uint8_t temprature_sens_read();
              #ifdef __cplusplus
              }
              #endif
              uint8_t temprature_sens_read();



              BLEServer* pServer = NULL;
              BLECharacteristic* pCharacteristic = NULL;
              bool deviceConnected = false;
              bool oldDeviceConnected = false;
              float mea = 0;
              int LED13 = 5;   //  The on-board Arduion LED

              // https://www.uuidgenerator.net/

              #define SERVICE_UUID        "4fafc201-1fb5-459e-8fcc-c5c9c331914b"
              #define CHARACTERISTIC_UUID "beb5483e-36e1-4688-b7f5-ea07361b26a8"


              class MyServerCallbacks: public BLEServerCallbacks {
                 void onConnect(BLEServer* pServer) {
                   deviceConnected = true;
                   BLEDevice::startAdvertising();
                 };

                 void onDisconnect(BLEServer* pServer) {
                   deviceConnected = false;
                 }
              };




              void setup()
              {
               Serial.begin(115200);

               // Create the BLE Device
               BLEDevice::init("Serv");

               // Create the BLE Server
               pServer = BLEDevice::createServer();
               pServer->setCallbacks(new MyServerCallbacks());

               // Create the BLE Service
               BLEService *pService = pServer->createService(SERVICE_UUID);

               // Create a BLE Characteristic
               pCharacteristic = pService->createCharacteristic(
                                   CHARACTERISTIC_UUID,
                                   BLECharacteristic::PROPERTY_READ   |
                                   BLECharacteristic::PROPERTY_WRITE  |
                                   BLECharacteristic::PROPERTY_NOTIFY
                                 );

               // https://www.bluetooth.com/specifications/gatt/viewer?attributeXmlFile=org.bluetooth.descriptor.gatt.client_characteristic_configuration.xml
               // Create a BLE Descriptor
               pCharacteristic->addDescriptor(new BLE2902());

               // Start the service
               pService->start();

               // Start advertising
               BLEAdvertising *pAdvertising = BLEDevice::getAdvertising();
               pAdvertising->addServiceUUID(SERVICE_UUID);
               pAdvertising->setScanResponse(false);
               pAdvertising->setMinPreferred(0x0);  // set value to 0x00 to not advertise this parameter
               BLEDevice::startAdvertising();
               pinMode(LED13, OUTPUT);
               Serial.println("Waiting a client connection to notify...");

              }

              void loop() {
               // notify changed value
                // Read the PulseSensor's value.
               // Assign this value to the "Signal" variable
               if (deviceConnected)
               {
                  if(Serial.available()>0)
                  {
                    String sending = Serial.readString();
                    std::string s =sending.c_str();
                    pCharacteristic->setValue(s);
                    pCharacteristic->notify();
                  }


                 // Bluetooth stack will go into congestion, if too many packets are sent, in 6 hours test i was able to go as low as 3ms
               }
               else
               {
                 digitalWrite(LED13, LOW);               //  Else, the sigal must be below "550", so "turn-off" this LED.
               }

               delay(10);

              }

              1 Reply Last reply Reply Quote 0
