Tip: Inbuilt Raspberry Pi Pin-out Mapping



  • Sharing a tip that can be very useful when working with Raspberry pi GPIO, The GPIO Pinout is designed to be both a quick and interactive reference to the Raspberry Pi GPIO pins, plus a comprehensive guide to your Raspberry Pi's GPIO interfaces. It also includes dozens of pinouts for Raspberry Pi add-on boards, HATs and pHATs.

    This Pinout.xyz gather useful information about the Raspberry Pi GPIO interface and add-on boards and invite board manufacturers to produce their own "overlay" files which describe which pins their Pi add-ons use. It's very handy when comes quick prototyping.

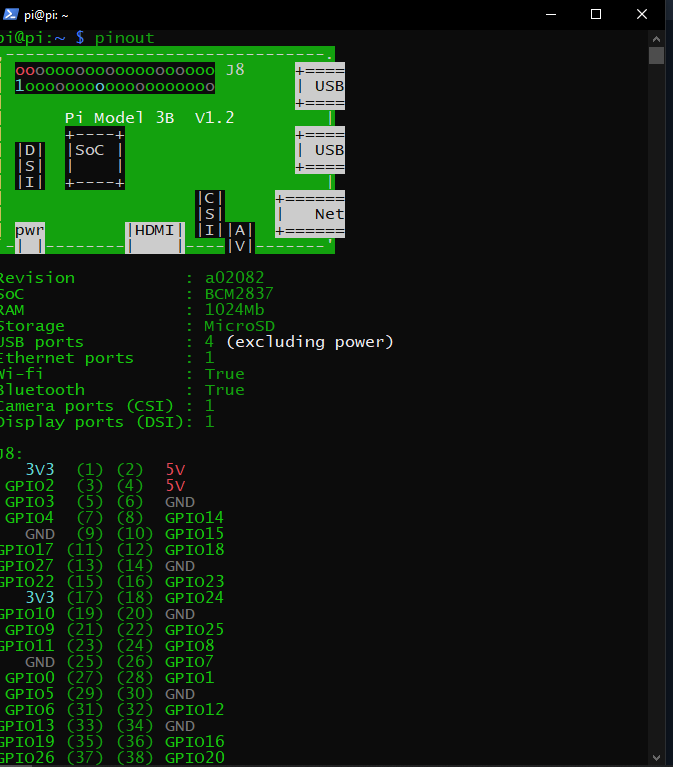

    command

    pinout


    more details: https://pinout.xyz/
